Hawk V‑Lite Anamorphics

high contrast | small and lightweight | macro 55 mm | state of the art for 15 years

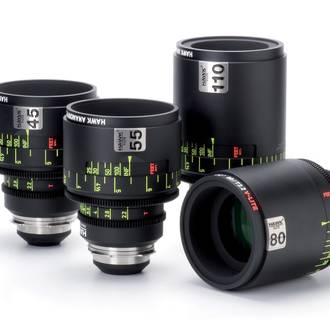

Small and robust, the industry standard for anamorphic glass. Hawk V‑Lite 2x anamorphic lenses deliver the unique look and reliability of Hawk anamorphic glass in a smaller package. The combination of their optical characteristics, robustness, user-friendliness, range of focal lengths and surprisingly small size – smaller than many commonly used spherical primes – has made them popular worldwide.

Technical data Hawk V‑Lite Anamorphics

Lens	Focal Length Stop	CFD	MOD	Angle of View horizontal	Weight	Front Diameter	Overall Length	Min. Filter Size	Image Area diagonal	Illumination Area diagonal

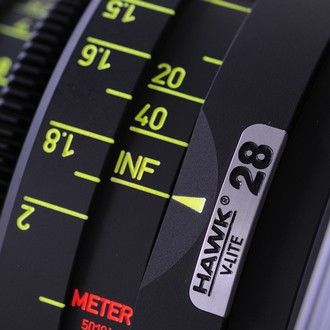

Hawk V‑Lite 28	28 mm/T2.2	0.8 m2‘7“	0.65 m2‘2“	84.4°	2.1 kg4.6 lbs	120 mm	138 mm	4x5.65“	28.5 mm	29 mm

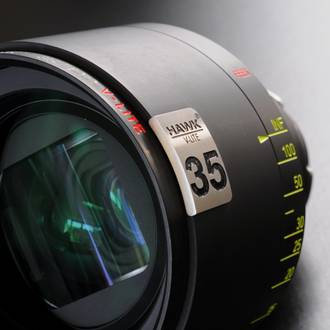

Hawk V‑Lite 35	35 mm/T2.2	1 m3‘3“	0.8 m2‘7“	61.8°	2.9 kg6.4 lbs	120 mm	170 mm	4x5.65“	30 mm	30.5 mm
Hawk V‑Lite 45	45 mm/T2.2	1 m3‘3“	0.8 m2‘7“	52.1°	2 kg4.4 lbs	104 mm	155 mm	4x5.65“	31.5 mm	32 mm
Hawk V‑Lite 55	55 mm/T2.2	1 m3‘3“	0.8 m2‘7“	43.8°	2 kg4.4 lbs	104 mm	155 mm	4x5.65“	32.5 mm	33 mm

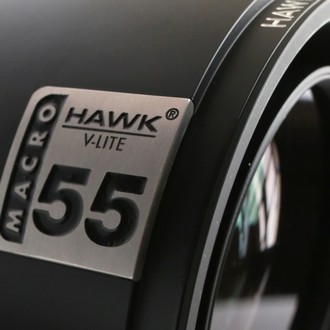

Hawk V‑Lite 55 macro	55 mm/T2.2	0.35 m1‘2“	0.12 m5“	48.3°	3 kg6.6 lbs	120 mm	210 mm	4x5.65“	29.5 mm	30 mm
Hawk V‑Lite 65	65 mm/T2.2	1 m3‘3“	0.8 m2‘7“	38.4°	2.2 kg4.8 lbs	104 mm	163 mm	4x5.65“	31.5 mm	32 mm
Hawk V‑Lite 80	80 mm/T2.2	1 m3‘3“	0.8 m2‘7“	33.6°	2.4 kg5.3 lbs	104 mm	183 mm	4x5.65“	34.5 mm	35 mm
Hawk V‑Lite 110	110 mm/T3	1 m3‘3“	0.8 m2‘7“	24.3°	2.7 kg6 lbs	104 mm	200 mm	4x5.65“	42 mm	44.5 mm
Hawk V‑Lite 140	140 mm/T3.5	1 m3‘3“	0.75 m2‘6“	20.1°	2.9 kg6.4 lbs	104 mm	226 mm	4x5.65“	42 mm	45 mm
