high contrast | distinctive anamorphic performance | close focus design | perfectly matched to the primes

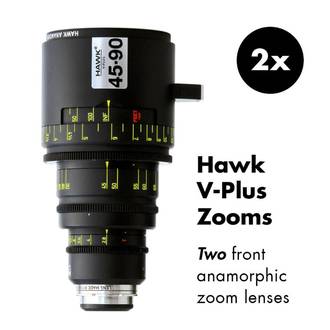

Genuine Front Anamorphic Zoom Lenses. Unlike existing anamorphic zooms, the Hawk front anamorphic zoom lenses place the anamorphic element in front of the spherical elements. The resulting image displays all the anamorphic blur, shallow depth of field, elliptical highlights, streaks and flares, geometric curvature and barrel distortion, and distinct planes of focus cinematographers expect from anamorphic primes.
| Lens | Focal Length Stop | CFD | MOD | Angle of View horizontal | Weight | Front Diameter | Overall Length | Min. Filter Size | Image Area diagonal | Illumination Area diagonal |
|---|---|---|---|---|---|---|---|---|---|---|

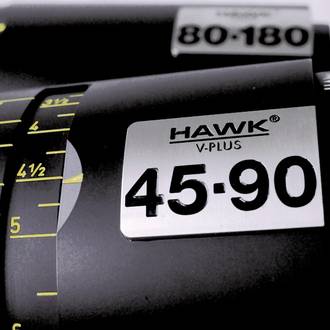

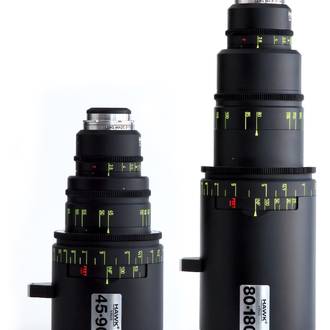

| Hawk V‑Plus 45-90 | 45-90 mm/T2.8 | 0.75 m | 0.45 m | 52.8°-31° | 5 kg | 125 mm | 280 mm | 4x5.65“ | 28.5 mm | 29 mm |
| Hawk V‑Plus 80-180 | 80-180 mm/T2.8 | 1 m | 0.54 m | 29.8°-17° | 8.1 kg | 125 mm | 433 mm | 4x5.65“ | 34 mm | 34.5 mm |
Hawk V-Plus Front Anamorphic Zoom Lenses (PDF)
Hawk V-Plus Front Anamorphic Zoom Lenses - Additional Information (PDF)
Hawk V-Plus Front Anamorphic Zoom Lenses - Technical Data (PDF)
