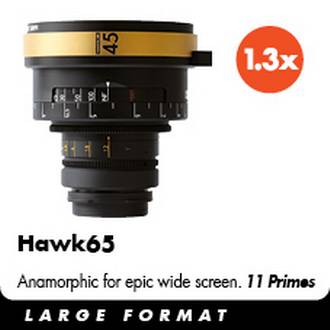

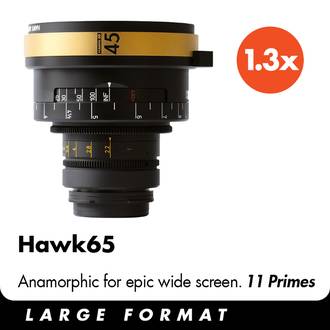

Hawk65 – large format anamorphics

epic large format look | superior definition | soft natural contrast | pleasant skin tones

Anamorphic for epic wide screen. The Hawk65 anamorphic lenses offer a truly unique aesthetic. They combine an unparalleled high-quality anamorphic look with the right balance of clean image rendition and organic texture. The 1.3x anamorphic squeeze elevates large format sensors to their highest level. New coating technology with soft, natural contrast creates amazing skin tones and makes Hawk65 lenses the perfect companion for digital sensors.

Technical data Hawk65 – large format anamorphics

Lens	Focal Length Stop	CFD	MOD	Angle of View horizontal	Weight	Front Diameter	Overall Length	Min. Filter Size	Image Area diagonal	Illumination Area diagonal
Hawk65 35	35 mm/T2.2	0.8 m2‘7“	0.61 m2‘	70°	3.5 kg7.7 lbs	156 mm	165 mm	4x5.65“	46 mm	46.5 mm

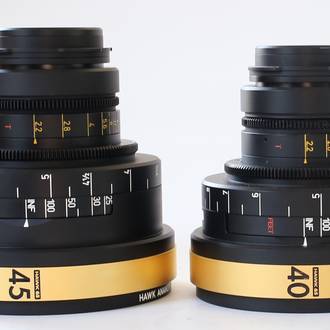

Hawk60 40	40 mm/T2.2	1 m3‘3“	0.8 m2‘7“	63.3°	3.6 kg7.9 lbs	156 mm	178 mm	4x5.65“	48 mm	49 mm

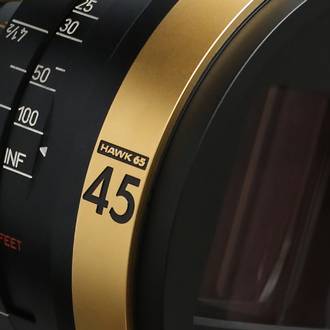

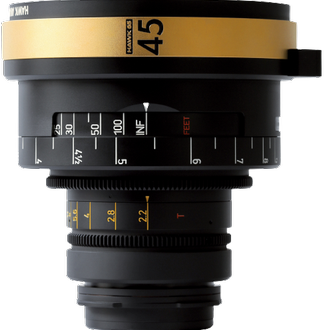

Hawk65 45	45 mm/T2.2	1 m3‘3“	0.8 m2‘7“	57.3°	3.8 kg8.4 lbs	156 mm	191 mm	4x5.65“	50 mm	51 mm
Hawk65 50	50 mm/T2.2	0.8 m2‘7“	0.51 m1‘8“	50°	3.8 kg7.3 lbs	142 mm	257 mm	4x5.65“	51 mm	52 mm
Hawk65 60	60 mm/T2.2	1 m3‘3“	0.74 m2‘5“	41.7°	3.3 kg7.3 lbs	125 mm	225 mm	4x5.65“	52 mm	53 mm
Hawk65 65 macro	65 mm/T2.2	0.55 m1‘10“	0.31 m1‘	38.8°	3.4 kg7.6 lbs	125 mm	210 mm	4x5.65“	51.5 mm	52.5 mm
Hawk65 70	70 mm/T2.2	1 m3‘3“	0.8 m2‘7“	35.4°	2.9 kg6.4 lbs	120 mm	195 mm	4x5.65“	51.5 mm	52.5 mm
Hawk65 80	80 mm/T2.8	0.8 m2‘7“	0.54 m1‘9“	31.9°	2.8 kg6.2 lbs	104 mm	234 mm	4x5.65“	53.5 mm	54 mm

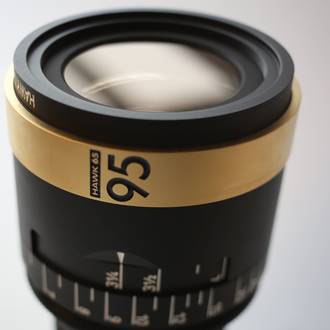

Hawk65 95	95 mm/T2.8	1 m3‘3“	0.76 m2‘6“	28.5°	2.5 kg5.5 lbs	104 mm	209 mm	4x5.65“	54 mm	55 mm
Hawk65 120	120 mm/T2.8	1 m3‘3“	0.71 m2‘4“	24.5°	3.9 kg8.6 lbs	120 mm	260 mm	4x5.65“	58 mm	60 mm
Hawk65 150	150 mm/T2.8	1 m3‘3“	0.72 m2‘4“	23.5°	3.9 kg8.6 lbs	120 mm	250 mm	4x5.65“	> 60 mm	> 60 mm
