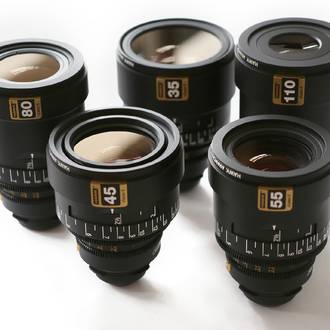

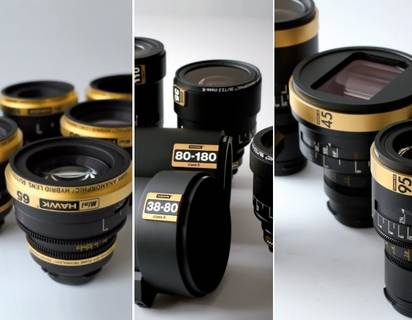

Hawk class‑X Anamorphics

improved definition | soft natural contrast | pleasant skin tones | close focus design | macro 55 mm

Calculated from scratch, and built in a strictly classic design without resorting to nontraditional methods, Hawk class‑X anamorphic lenses deliver an iconic 2x anamorphic look. Built on 25 years of lens design and manufacturing experience, Hawk class‑X lenses reflect the tremendous changes in filmmaking technology. This glass delivers improved definition, close focus and edge distortion while maintaining the organic look and feel of all Hawk lenses. And because the generational resolution loss and image softening of photochemical.

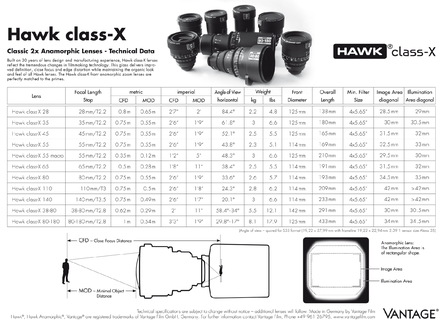

Technical data Hawk class‑X Anamorphics

Lens	Focal Length Stop	CFD	MOD	Angle of View horizontal	Weight	Front Diameter	Overall Length	Min. Filter Size	Image Area diagonal	Illumination Area diagonal
Hawk class‑X 28	28 mm/T2.2	0.8 m2‘7“	0.65 m2‘2“	84.4°	2.2 kg4.8 lbs	125 mm	138 mm	4x5.65“	28.5 mm	29 mm
Hawk class‑X 35	35 mm/T2.2	0.75 m2‘6“	0.55 m1‘9“	61.8°	3 kg6.6 lbs	125 mm	180 mm	4x5.65“	30 mm	30.5 mm

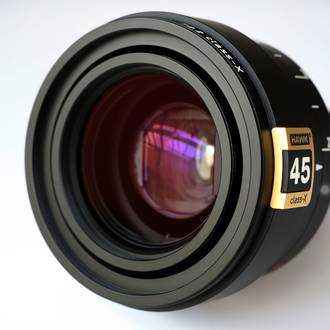

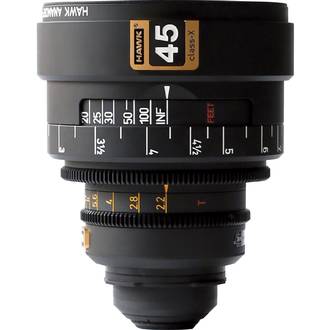

Hawk class‑X 45	45 mm/T2.2	0.75 m2‘6“	0.55 m1‘9“	52.1°	2.5 kg5.5 lbs	125 mm	165 mm	4x5.65“	31.5 mm	32 mm
Hawk class‑X 55	55 mm/T2.2	0.75 m2‘6“	0.55 m1‘9“	43.8°	2.3 kg5.1 lbs	114 mm	169 mm	4x5.65“	32.5 mm	33 mm

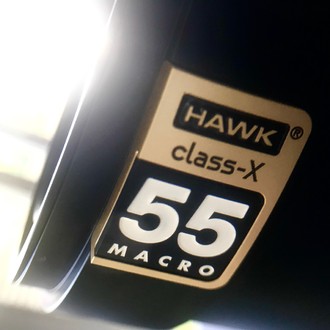

Hawk class‑X 55 macro	55 mm/T2.2	0.35 m1‘2“	0.12 m5“	48.3°	3 kg6.6 lbs	125 mm	210 mm	4x5.65“	29.5 mm	30 mm
Hawk class‑X 65	65 mm/T2.2	0.5 m1‘8“	0.28 m11“	38.4°	2.5 kg5.5 lbs	114 mm	191 mm	4x5.65“	31.5 mm	32 mm
Hawk class‑X 80	80 mm/T2.2	0.75 m2‘6“	0.55 m1‘9“	33.6°	2.6 kg5.7 lbs	114 mm	193 mm	4x5.65“	34.5 mm	35 mm
Hawk class‑X 110	110 mm/T3	0.75 m2‘6“	0.5 m1‘8“	24.3°	2.8 kg6.2 lbs	114 mm	209 mm	4x5.65“	42 mm	44.5 mm
Hawk class‑X 140	140 mm/T3.5	0.75 m2‘6“	0.49 m1‘7“	20.1°	3 kg6.6 lbs	114 mm	233 mm	4x5.65“	42 mm	45 mm
