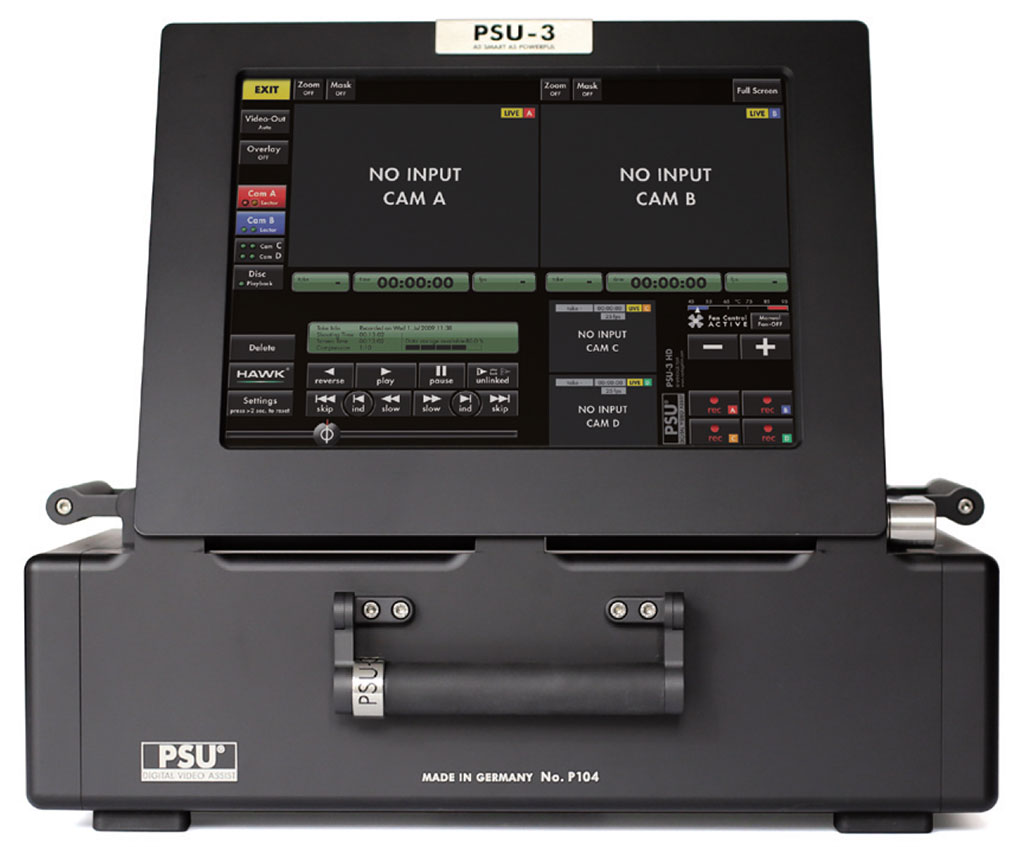

With the PSU-3 Vantage Film presents a new level of excellence in the design of HD digital video assist systems for the film set.

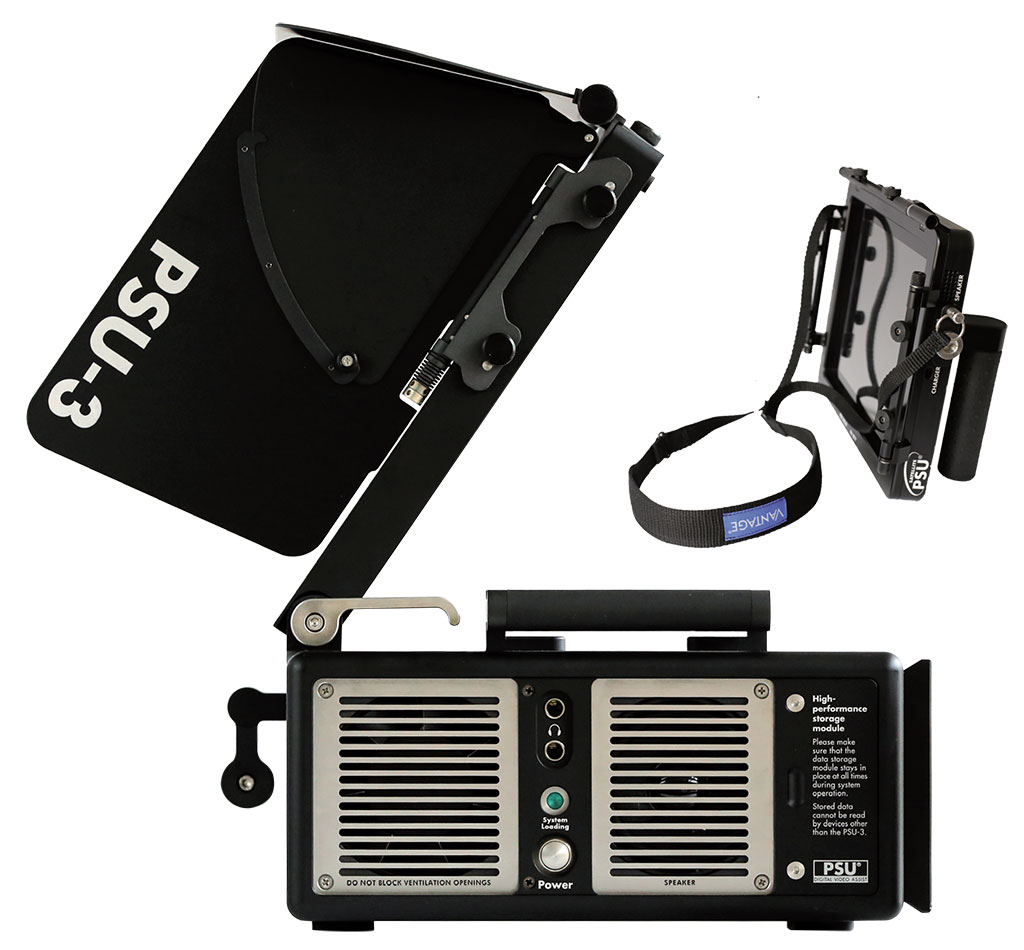

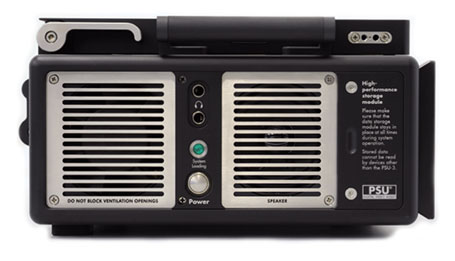

Two headphone amplifiers - one built-in speaker - exchangeable data storage.
The PSU‑3 achieves several major goals at the same time: Enhanced performance, HD image quality, state-of-the-art functionality as well as ultracompactness in size, power-consumption and weight.

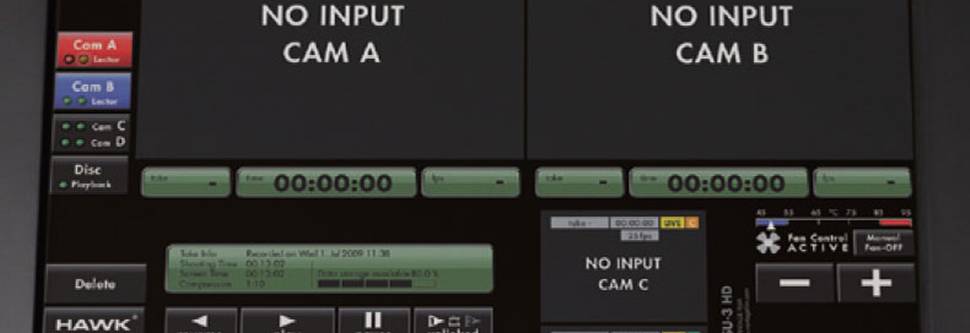

Vantage Film's PSU‑3 digital video assist system introduces the state-of-the-art integrated dual HD processing unit for high-definition video input and output. The PSU‑3 fully conforms to the HD-SDI standard and offers 2x single-link or 1x dual-link HD-SDI communication including timecode. The HD takes are displayed in HD image quality both on the PSU‑3 touchscreen and up to four HD monitors.
The PSU‑3 comes with the following new features:

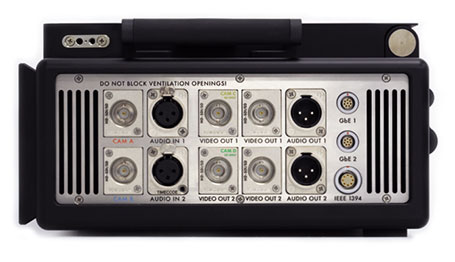

PSU‑3 input/output panel to connect four cameras, two sound signals and up to four monitors.
New functionality

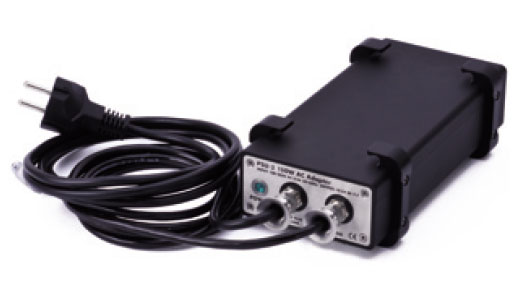

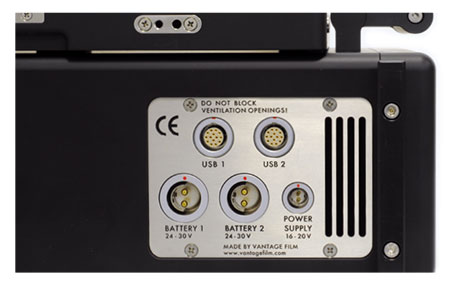

The PSU‑3 can be powered by camera batteries (24‑30V) or through a compact power unit.

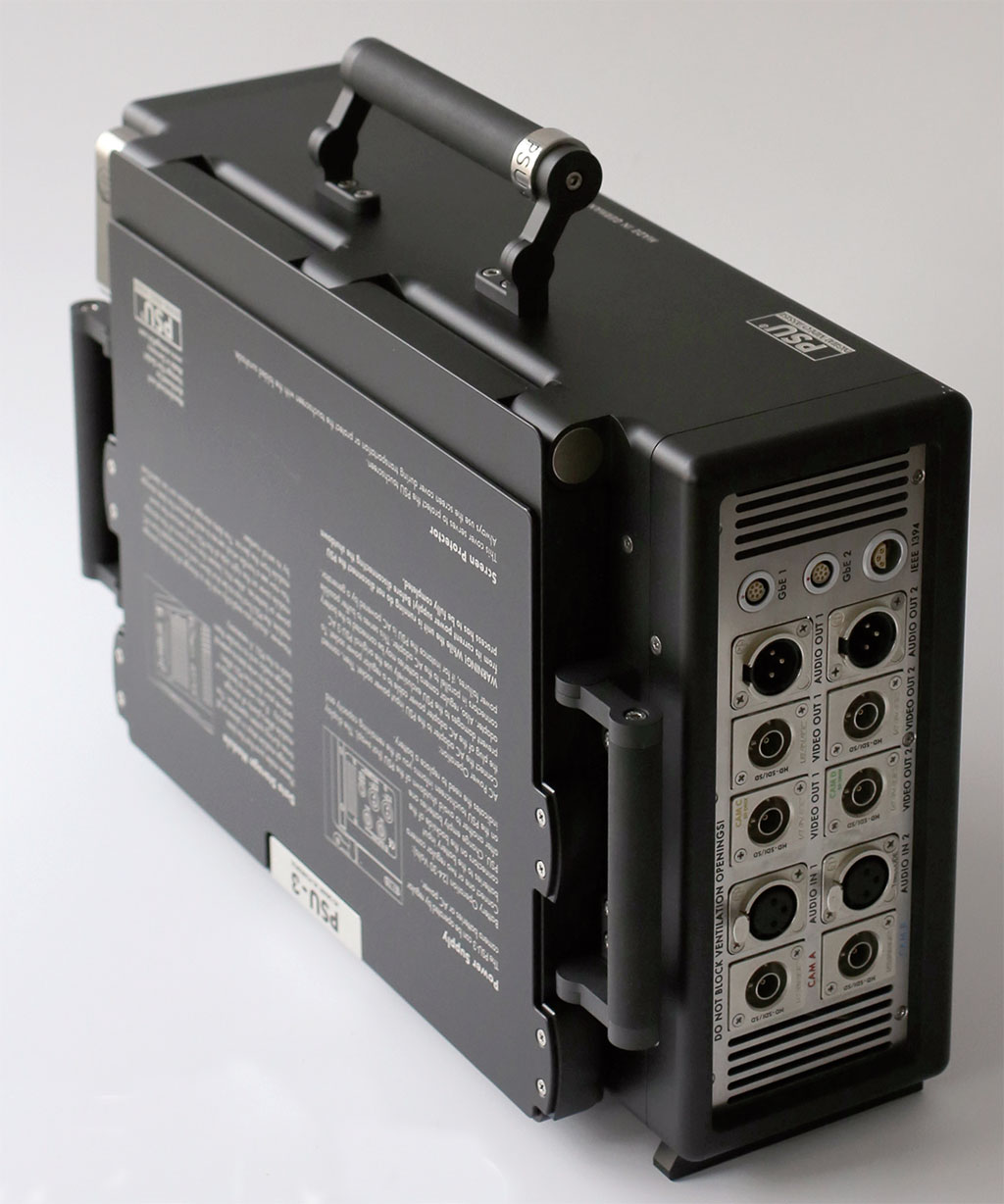

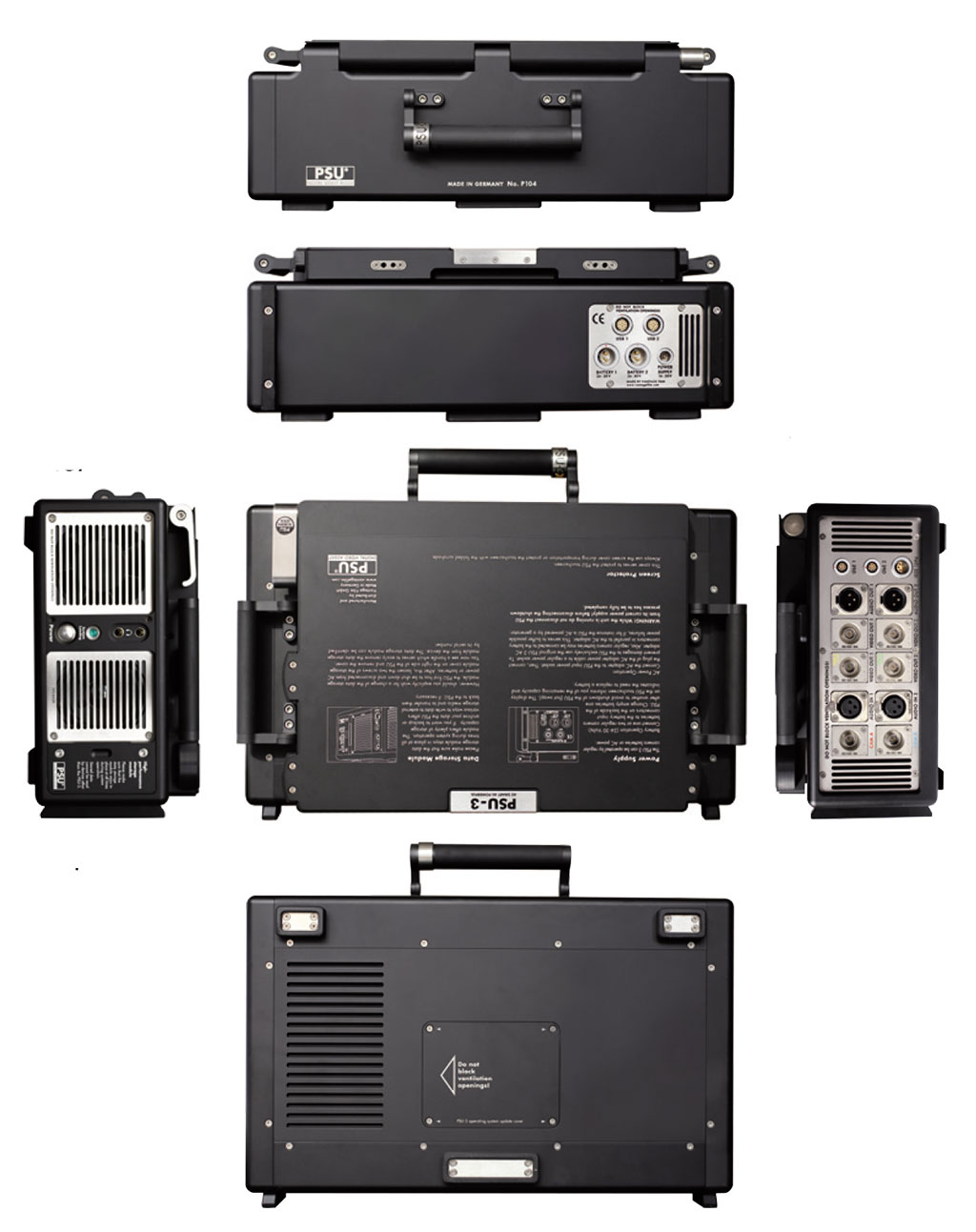

Superior mechanical design
Vantage PSU-3X (PDF)
Vantage PSU-3 User Manual 3.40MP (PDF)
Vantage PSU-3 User Manual 3.50MP (PDF)
Vantage PSU-3 Editing Instruction 3.40MP (PDF)
Vantage PSU-3 Editing Instruction 3.50MP (PDF)
Vantage PSU-3 Import Export Manager 3.40MP (PDF)
Vantage PSU-3 Import Export Manager 3.50MP (PDF)
Vantage PSU-3 Power Supply Information (PDF)
