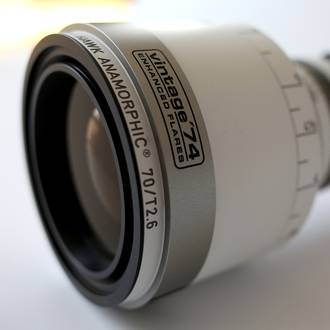

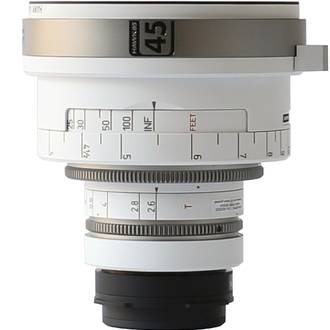

Hawk65 Vintage'74

versatile 1.3x squeeze | classic 2x anamorphic bokeh | iris shaping system

The smart 1.3x squeeze offers an array of benefits and options. With large 24x36 mm sensors, for example, 1.3x produces the increasingly popular aspect ratio of 2:1 while making full use of the sensor’s area and resolution. A slight top / bottom crop produces widescreen ratios like 2.4:1. Meanwhile, an ingenious patented Iris Shaping System produces bokeh similar to that of a 2x squeeze for classic anamorphic flavor.

Technical data Hawk65 Vintage'74

Lens Focal Length Stop CFD MOD Angle of View horizontal[1] Weight Front Diameter Overall Length Min. Filter Size Image Area diagonal Illumination Area diagonal
Hawk65'74 35 35 mm/T2.6 0.8 m2‘7“ 0.61 m2‘ 70° 3.5 kg7.7 lbs 156 mm 165 mm 4x5.65“ 46 mm 46.5 mm
Hawk60'74 40 40 mm/T2.6 1 m3‘3“ 0.8 m2‘7“ 63.3° 3.6 kg7.9 lbs 156 mm 178 mm 4x5.65“ 48 mm 49 mm
Hawk65'74 45 45 mm/T2.6 1 m3‘3“ 0.8 m2‘7“ 57.3° 3.8 kg8.4 lbs 156 mm 191 mm 4x5.65“ 50 mm 51 mm
Hawk65'74 50 50 mm/T2.6 0.8 m2‘7“ 0.51 m1‘8“ 50° 3.8 kg7.3 lbs 142 mm 257 mm 4x5.65“ 51 mm 52 mm
Hawk65'74 60 60 mm/T2.6 1 m3‘3“ 0.74 m2‘5“ 41.7° 3.3 kg7.3 lbs 125 mm 225 mm 4x5.65“ 52 mm 53 mm
Hawk65'74 65 macro 65 mm/T2.9 0.55 m1‘10“ 0.31 m1‘ 38.8° 3.4 kg7.6 lbs 125 mm 210 mm 4x5.65“ 51.5 mm 52.5 mm
Hawk65'74 70 70 mm/T2.6 1 m3‘3“ 0.8 m2‘7“ 35.4° 2.9 kg6.4 lbs 120 mm 195 mm 4x5.65“ 51.5 mm 52.5 mm
Hawk65'74 80 80 mm/T3.2 0.8 m2‘7“ 0.54 m1‘9“ 31.9° 2.8 kg6.2 lbs 104 mm 234 mm 4x5.65“ 53.5 mm 54 mm
Hawk65'74 95 95 mm/T3.2 1 m3‘3“ 0.76 m2‘6“ 28.5° 2.5 kg5.5 lbs 104 mm 209 mm 4x5.65“ 54 mm 55 mm
Hawk65'74 120 120 mm/T3.5 1 m3‘3“ 0.71 m2‘4“ 24.5° 3.9 kg8.6 lbs 120 mm 260 mm 4x5.65“ 58 mm 60 mm
Hawk65'74 150 150 mm/T3.5 1 m3‘3“ 0.72 m2‘4“ 23.5° 3.9 kg8.6 lbs 120 mm 250 mm 4x5.65“ > 60 mm > 60 mm
