reduced contrast, enhanced flares | very pleasant skin tones | distinctive anamorphic performance | close focus design

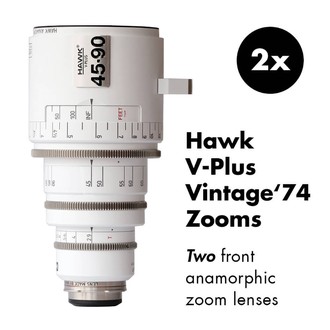

Genuine Front Anamorphic Zoom Lenses. Hawk V‑Plus Vintage’74 front anamorphic zoom lenses deliver lower contrast and flare characteristics of 1970s lenses with modern mechanics and the dependability, sharpness and consistency of all current Hawk lenses. These zoom lenses intercut seamlessly with the entire line of Hawk V‑Lite Vintage’74 and Hawk65 Vintage‘74 large format primes.
| Lens | Focal Length Stop | CFD | MOD | Angle of View horizontal | Weight | Front Diameter | Overall Length | Min. Filter Size | Image Area diagonal | Illumination Area diagonal |
|---|---|---|---|---|---|---|---|---|---|---|

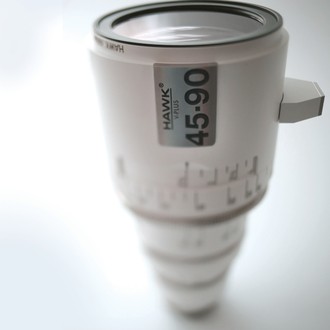

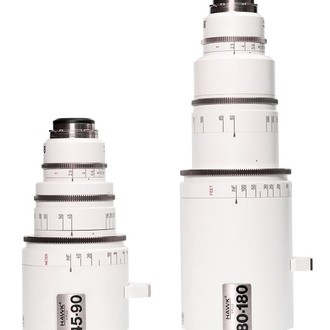

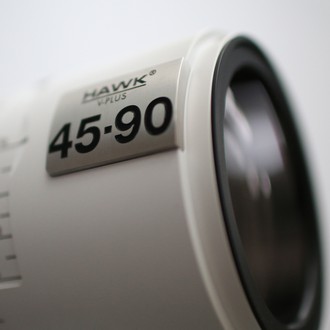

| Hawk V‑Plus 45-90 | 45-90 mm/T2.9 | 0.75 m | 0.45 m | 52.8°-31° | 5 kg | 125 mm | 280 mm | 4x5.65“ | 28.5 mm | 29 mm |
| Hawk V‑Plus 80-180 | 80-180 mm/T2.9 | 1 m | 0.54 m | 29.8°-17° | 8.1 kg | 125 mm | 433 mm | 4x5.65“ | 34 mm | 34.5 mm |
Hawk V-Plus Vintage´74 Front Anamorphic Zoom Lenses (PDF)
Hawk V-Plus Vintage´74 Front Anamorphic Zoom Lenses - Additional Information (PDF)
Hawk V-Plus Vintage´74 Front Anamorphic Zoom Lenses - Technical Data (PDF)
