Vantage One4 - Large Format Primes

full optical power for large format | T1.4 high speed optics | super close focus design

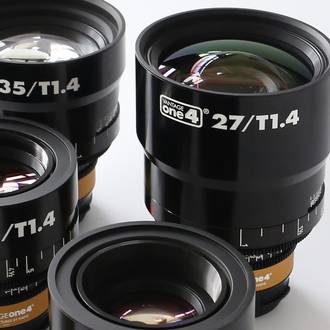

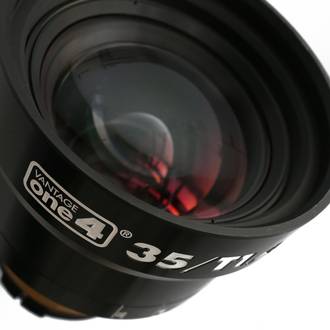

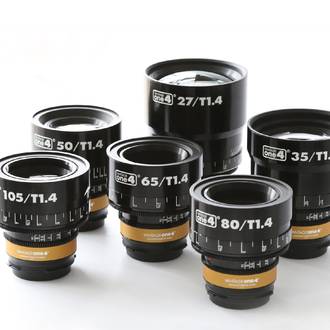

Superior T1.4 close focus prime lenses. The Vantage One4s contain no floating elements, no aspherics and no expanders – only the best spherical elements. Vantage One4 lenses are original designs that deliver their full optical power to new, larger formats, while also offering super close focus, compact design, and mechanical robustness.

Technical data Vantage One4 - Large Format Primes

Lens	Focal Length Stop	CFD	MOD	Angle of View horizontal	Weight	Front Diameter	Overall Length	Min. Filter Size	Image Circle	Illumination Circle
Vantage One4 19	19 mm/T1.4	0.22 m9“	0.04 m2“	87.9°	2.9 kg6.4 lbs	156 mm	142 mm	4x5.65“	45 mm	46 mm

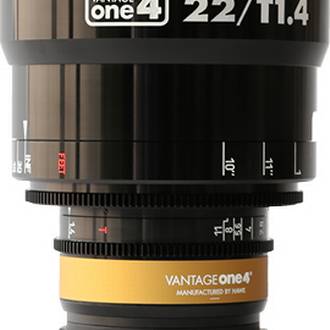

Vantage One4 22	22 mm/T1.4	0.25 m10“	0.05 m2“	78.8°	2.8 kg6.2 lbs	136 mm	170 mm	4x5.65“	45 mm	46 mm
Vantage One4 27	27 mm/T1.4	0.3 m1‘	0.07 m2 ½“	69.6°	3.1 kg6.8 lbs	136 mm	200 mm	4x5.65“	45.5 mm	46.5 mm
Vantage One4 35	35 mm/T1.4	0.25 m10“	0.05 m2“	56.3°	2.7 kg6 lbs	136 mm	166 mm	4x5.65“	46 mm	47 mm
Vantage One4 42	42 mm/T1.4	0.26 m10“	0.04 m2“	49.1°	3.3 kg7.3 lbs	136 mm	182 mm	4x5.65“	48.5 mm	50.5 mm
Vantage One4 50	50 mm/T1.4	0.35 m1‘2“	0.17 m7“	40°	2 kg4.4 lbs	120 mm	146 mm	4x5.65“	48 mm	50 mm
Vantage One4 65	65 mm/T1.4	0.4 m1‘4“	0.27 m11“	30.6°	1.5 kg3.3 lbs	120 mm	135 mm	4x5.65“	55 mm	57.5 mm
Vantage One4 80	80 mm/T1.4	0.5 m1‘8“	0.35 m1‘2“	25.6°	1.6 kg3.5 lbs	120 mm	135 mm	4x5.65“	59 mm	> 60 mm
Vantage One4 105	105 mm/T1.4	0.7 m2‘4“	0.55 m1‘9“	20.2°	1.8 kg4 lbs	120 mm	135 mm	4x5.65“	59 mm	> 60 mm
Vantage One4 140	140 mm/T1.4	0.92 m3‘	0.72 m2‘4“	15.8°	2.8 kg6.2 lbs	120 mm	170 mm	4x5.65“	> 60 mm	> 60 mm
