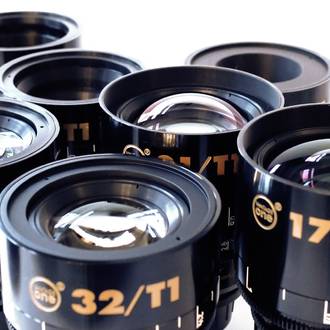

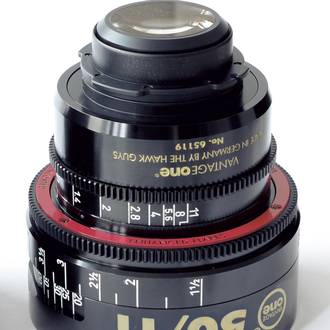

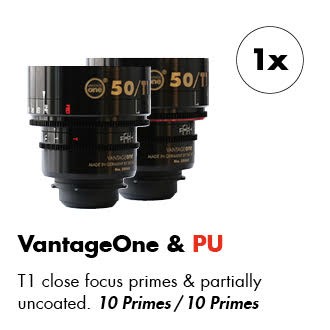

Vantage One PU Spherical Primes

low contrast, enhanced flares | three different looks in each lens | super close focus design

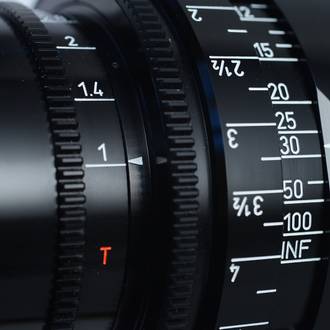

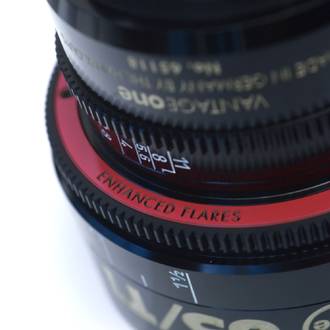

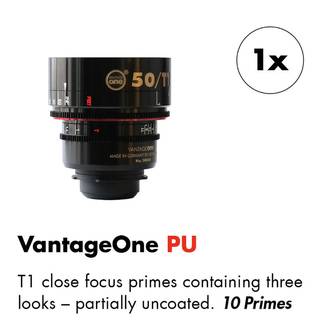

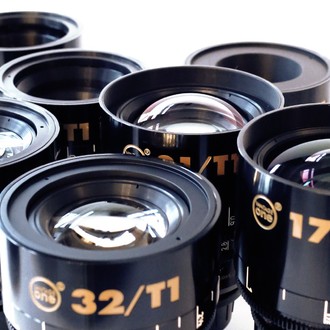

Ultra fast T1 close focus primes contai- ning three looks – partically uncoated. The design philosophy behind Vantage One lenses is fundamentally different, taking advantage of basic changes in filmmaking technology to deliver a distinctive visual fingerprint. Vantage One PU lenses offer lower, natural contrast and pleasing skin tones, combined with enhanced flares. Their T-Stop of T1 creates unique depth of field characteristics.

Technical data Vantage One PU Spherical Primes

Lens	Focal Length Stop	CFD	MOD	Angle of View horizontal[1]	Weight	Front Diameter	Overall Length	Min. Filter Size	Image Circle	Illumination Circle
Vantage One PU 14.5	14.5 mm/T1	0.25 m10“	0.05 m2“	84.8°	2.4 kg5.3 lbs	128 mm	158 mm	4x5.65“	32.2 mm	32.5 mm
Vantage One PU 17.5	17.5 mm/T1	0.25 m10“	0.05 m2“	75.8°	2 kg4.4 lbs	110 mm	152 mm	4x5.65“	30 mm	31 mm

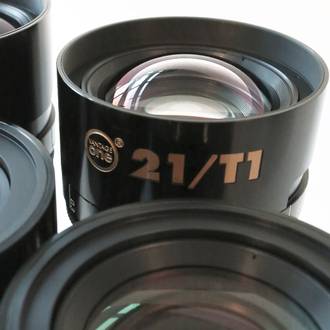

Vantage One PU 21	21 mm/T1	0.25 m10“	0.06 m2 ½“	67.7°	1.8 kg4 lbs	110 mm	142 mm	4x5.65“	32.2 mm	32.5 mm
Vantage One PU 25	25 mm/T1	0.25 m10“	0.08 m3“	58.8°	1.6 kg3.5 lbs	110 mm	124 mm	4x5.65“	33.5 mm	34 mm

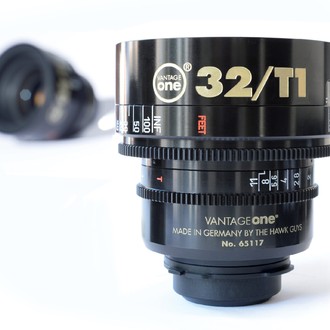

Vantage One PU 32	32 mm/T1	0.25 m10“	0.08 m3“	48.9°	1.8 kg4 lbs	110 mm	126 mm	4x5.65“	34 mm	35 mm
Vantage One PU 40	40 mm/T1	0.35 m1‘2“	0.19 m8“	37.9°	1.5 kg3.3 lbs	110 mm	126 mm	4x5.65“	34 mm	34.5 mm

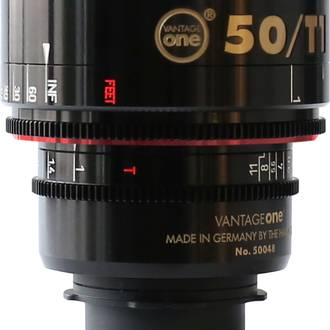

Vantage One PU 50	50 mm/T1	0.29 m11“	0.15 m6“	30.2°	1.4 kg3.1 lbs	110 mm	124 mm	4x5.65“	36 mm	37 mm
Vantage One PU 65	65 mm/T1	0.39 m1‘3“	0.23 m9“	23.7°	1.6 kg3.5 lbs	110 mm	124 mm	4x5.65“	38 mm	42 mm
Vantage One PU 90	90 mm/T1	0.59 m1‘11“	0.43 m1‘5“	18.2°	2 kg4.4 lbs	128 mm	142 mm	4x5.65“	36 mm	46 mm
Vantage One PU 120	120 mm/T1	0.81 m2‘8“	0.62 m2‘	14.3°	3.7 kg8.2 lbs	156 mm	174 mm	4x5.65“	39 mm	47 mm
