distinctive 1.3x anamorphic look | high contrast, gentle squeeze | close focus design

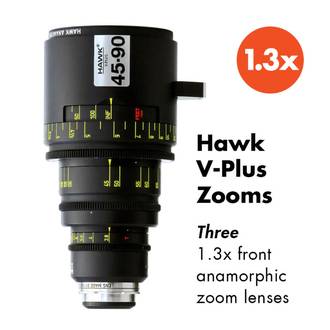

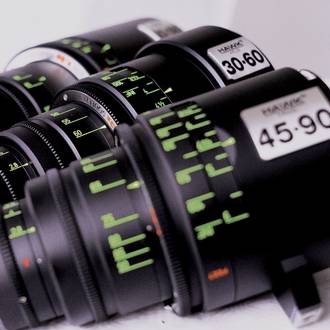

Genuine 1.3x front anamorphic zoom lenses. Unlike existing anamorphic zooms, the Hawk front anamorphic zooms place the anamorphic element in front of the spherical elements. The resulting image displays all the anamorphic blur, shallow depth of field, elliptical highlights, streaks and flares, geometric curvature and barrel distortion, and distinct planes of focus. Hawk front anamorphic zoom lenses intercut seamlessly with our entire line of 1.3x anamorphic primes.
| Lens | Focal Length Stop | CFD | MOD | Angle of View horizontal | Weight | Front Diameter | Overall Length | Min. Filter Size | Image Area diagonal | Illumination Area diagonal |
|---|---|---|---|---|---|---|---|---|---|---|

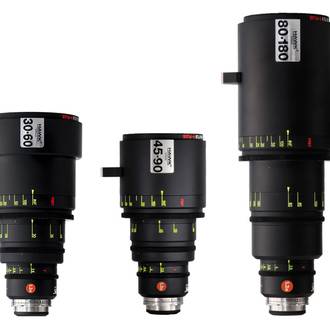

| Hawk V‑Plus 30-60 | 30-60 mm/T2.8 | 0.6 m | 0.26 m | 53.2°-29.2° | 5.6 kg | 142 mm | 310 mm | 4x5.65“ | 30.5 mm | 31 mm |
| Hawk V‑Plus 45-90 | 45-90 mm/T2.8 | 0.75 m | 0.45 m | 39.5°-23° | 5.3 kg | 125 mm | 280 mm | 4x5.65“ | 32.5 mm | 33.5 mm |
| Hawk V‑Plus 80-180 | 80-180 mm/T2.8 | 1 m | 0.54 m | 21.7°-13° | 7.6 kg | 125 mm | 430 mm | 4x5.65“ | 36.5 mm | 37 mm |
Hawk V-Plus 1.3x Front Anamorphic Zoom Lenses (PDF)
Hawk V-Plus 1.3x Front Anamorphic Zoom Lenses - Additional Information (PDF)
Hawk V-Plus 1.3x Front Anamorphic Zoom Lenses - Technical Data (PDF)
