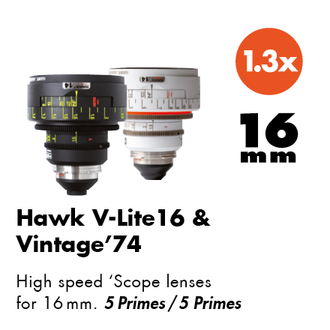

Hawk V‑Lite16 & Vintage'74 Anamorphics

distinctive anamorphic character | five 16 mm primes | small and lightweight | two versions available

High speed ‘Scope lenses for 16 mm. Hawk V‑Lite16 anamorphics are smaller than most spherical lenses on the market. Still, they offer the same stunning performance as all Hawk anamorphics. Finally, cinematographers and camera operators have the opportunity to work with small S16 lenses that are just as good as their 35 mm counterparts.

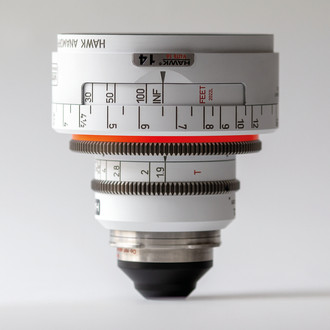

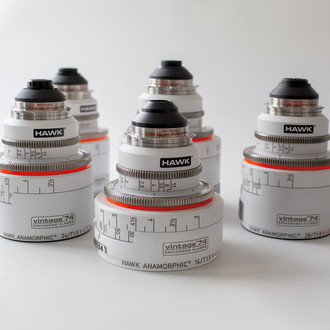

The Hawk V‑Lite16 Vintage’74s incorporate a precision Iris Shaping System that delivers classic 2x anamorphic bokeh. The Vintage’74 coating technology provides authentic period signature, combined with modern, reliable mechanics and contemporary optics.

Technical data Hawk V‑Lite16 & Vintage'74 Anamorphics

Lens	Focal Length Stop	CFD	MOD	Angle of View horizontal	Weight	Front Diameter	Overall Length	Min. Filter Size	Image Area diagonal	Illumination Area diagonal
Hawk V‑Lite16 14	14 mm/T1.5	0.8 m2‘7“	0.64 m2‘1“	62.8°	1.9 kg4.2 lbs	120 mm	148 mm	4x5.65“	14 mm	15 mm
Hawk V‑Lite16 18	18 mm/T1.5	1 m3‘3“	0.8 m2‘7“	44.2°	2.8 kg6.2 lbs	120 mm	181 mm	4x5.65“	15 mm	15.5 mm
Hawk V‑Lite16 24	24 mm/T1.5	1 m3‘3“	0.82 m2‘8“	38°	2 kg4.4 lbs	104 mm	163 mm	4x5.65“	15.5 mm	16.5 mm
Hawk V‑Lite16 28	28 mm/T1.5	1 m3‘3“	0.82 m2‘8“	31.8°	2.1 kg4.6 lbs	104 mm	166 mm	4x5.65“	17 mm	17.5 mm
Hawk V‑Lite16 35	35 mm/T1.5	1 m3‘3“	0.81 m2‘7“	25.2°	2.1 kg4.6 lbs	104 mm	168 mm	4x5.65“	19 mm	20 mm

Lens	Focal Length Stop	CFD	MOD	Angle of View horizontal	Weight	Front Diameter	Overall Length	Min. Filter Size	Image Area diagonal	Illumination Area diagonal
Hawk V‑Lite16 '74 14	14 mm/T1.9	0.8 m2‘7“	0.64 m2‘1“	62.8°	1.9 kg4.2 lbs	120 mm	148 mm	4x5.65“	14 mm	15 mm

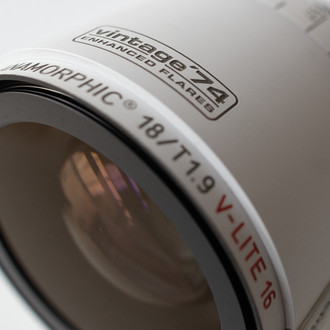

Hawk V‑Lite16 '74 18	18 mm/T1.9	1 m3‘3“	0.8 m2‘7“	44.2°	2.8 kg6.2 lbs	120 mm	181 mm	4x5.65“	15 mm	15.5 mm
Hawk V‑Lite16 '74 24	24 mm/T1.9	1 m3‘3“	0.82 m2‘8“	38°	2 kg4.4 lbs	104 mm	163 mm	4x5.65“	15.5 mm	16.5 mm
Hawk V‑Lite16 '74 28	28 mm/T1.9	1 m3‘3“	0.82 m2‘8“	31.8°	2.1 kg4.6 lbs	104 mm	166 mm	4x5.65“	17 mm	17.5 mm
Hawk V‑Lite16 '74 35	35 mm/T1.9	1 m3‘3“	0.81 m2‘7“	25.2°	2.1 kg4.6 lbs	104 mm	168 mm	4x5.65“	19 mm	20 mm
