Hawk V‑Lite Anamorphics

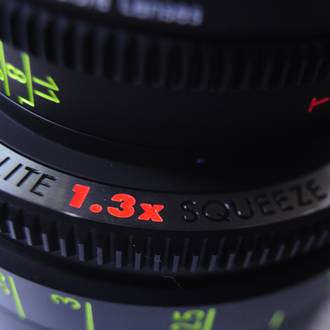

distinctive 1.3x anamorphic look | high contrast, gentle squeeze | small and lightweight

Maximum image quality, combined with a unique emotional look. The unique squeeze factor of 1.3x makes it possible to use nearly the entire sensor area of a 16:9 digital camera to achieve the popular widescreen 2.40:1 release format. This means maximum image quality combined with a very pleasant emotional effect. Furthermore, the 1.3x lenses combined with a 4:3 sensor stretch the image to 1.78:1 for 16:9 TV release.



Technical data Hawk V‑Lite Anamorphics

Lens Focal Length Stop CFD MOD Angle of View horizontal[1] Weight Front Diameter Overall Length Min. Filter Size Image Area diagonal Illumination Area diagonal
Hawk V‑Lite 20 20 mm/T2.2 0.6 m2‘ 0.45 m1‘5“ 85.1° 2.5 kg5.5 lbs 142 mm 145 mm 4x5.65“ 30 mm 31 mm
Hawk V‑Lite 24 24 mm/T2.2 0.6 m2‘ 0.45 m1‘5“ 76° 2.5 kg5.5 lbs 120 mm 145 mm 4x5.65“ 30 mm 31 mm

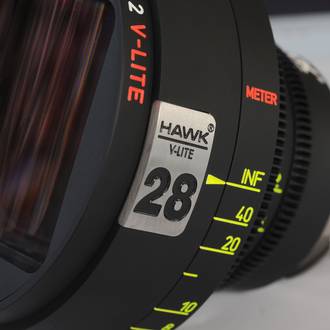

Hawk V‑Lite 28 28 mm/T2.2 0.8 m2‘7“ 0.65 m2‘2“ 65.7° 2.3 kg5 lbs 120 mm 137 mm 4x5.65“ 29 mm 30 mm
Hawk V‑Lite 35 35 mm/T2.2 1 m3‘3“ 0.8 m2‘7“ 47.7° 2.9 kg6.4 lbs 120 mm 170 mm 4x5.65“ 32.5 mm 33.5 mm

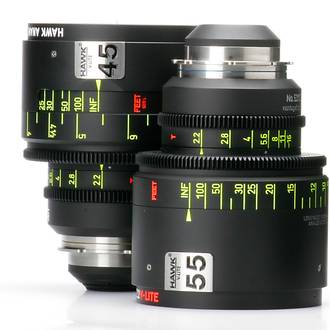

Hawk V‑Lite 45 45 mm/T2.2 1 m3‘3“ 0.8 m2‘7“ 39.9° 1.9 kg4.2 lbs 104 mm 154 mm 4x5.65“ 34 mm 34.5 mm
Hawk V‑Lite 55 55 mm/T2.2 1 m3‘3“ 0.8 m2‘7“ 32.9° 2 kg4.4 lbs 104 mm 156 mm 4x5.65“ 35 mm 36 mm

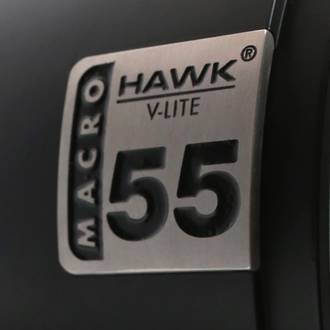

Hawk V‑Lite 55 macro 55 mm/T2.2 0.35 m1‘2“ 0.12 m5“ 36.7° 3 kg6.6 lbs 120 mm 210 mm 4x5.65“ 34 mm 35 mm
Hawk V‑Lite 65 65 mm/T2.2 1 m3‘3“ 0.8 m2‘7“ 31.3° 2 kg4.4 lbs 104 mm 160 mm 4x5.65“ 36.5 mm 38 mm
Hawk V‑Lite 80 80 mm/T2.2 1 m3‘3“ 0.8 m2‘7“ 25.2° 2.3 kg5 lbs 104 mm 185 mm 4x5.65“ 36.5 mm 37.5 mm
Hawk V‑Lite 110 110 mm/T3 1 m3‘3“ 0.8 m2‘7“ 18.8° 2.6 kg5.7 lbs 104 mm 200 mm 4x5.65“ 43 mm 48 mm
Hawk V‑Lite 140 140 mm/T3.5 1 m3‘3“ 0.75 m2‘6“ 15.4° 2.7 kg6 lbs 104 mm 226 mm 4x5.65“ 43 mm 46 mm
